OSCO Operator Speciality

Automatic Gate Operators
Model SWR

SWC Commercial
  • 1/2 or 1 HP continuous-duty PSC motor
  • 115 VAC or 230 VAC single phase
SWD Commercial/Residential
  • DC-powered battery back-up with advanced soft start/soft stop motor control
  • Full-time 1/2 HP DC motor
  • Selectable fail-safe or fail-secure modes of operation
  • Solar power capable
SWR Residential
  • 1/2 HP PSC motor
  • 115 VAC or 230 VAC single phase
Common Features
  • Crank style
  • Black UV stabilized polyethylene cover
  • Pad mount standard; post mount optional
  • Exterior reset button
  • UL325/UL991 compliant APeX controller
  • Fully integrated radio receiver
SW SERIES SWING GATE OPERATOR SPECIFICATIONS
Model
HP
Voltage
(Single Phase)
Drive
Type
Maximum Gate Length
Maximum Gate Weight
Seconds to Open
Maximum Cycles
SWC
SWC-2
1/2
115 of 230 V
crank
17'
600 lbs
11-14
continuous duty
SWC-1
1
115 or 230 V
crank
19'
1000 lbs
11-14
continuous duty
SWD
SWD-211
1/2
115V/24VDC
Battery Backup
(solar charger optional)
crank
18'
700 lbs
11-14
continuous duty
SWR
SWR-211
1/2
115V
crank
15'
500 lbs
11-14
150/day
SWR-221
1/2
230V
crank
15'
500 lbs
11-14
150/day

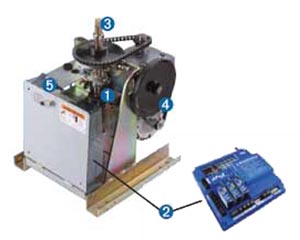

1. Cam Operated Limits

Easily accessible through access door

osco linear gate opener



2.APeX Controller
  • UL325/UL991 compliant 24 VDC control module
  • Full featured for access control, security and entrapment protection
3. Steel Crank
  • Easily removable
  • Integrated manual disconnect
Gear reducer and pillow block bearing for smooth, reliable, quiet power transmission
4. Heavy-Duty Components
5. Standard Convience Features
  • Exterior reset button
  • Power on/off button
  • Accessory power outlet on115V machines
  • Integrated 3-button station
  • Includes APeX Controller with integrated radio receiver, plug-in loop detector capability, surge protection, and easy to read labeling standard
Electrical
  • Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
  • Continuous tone entrapment alarm with reset button
  • Integrated programmable warning beeper during gate movement
  • LED diagnostic display for ease of setup and troubleshooting
  • Selectable pre-start alarm with provision and ADA compliant visual pre-start and run alarm
  • Regulated 24 Volt DC power available for access control accessories
  • Integrated maximum run and auto close timer (0-9 minutes)
  • Built-in networked dual gate capability using 3-wire shielded cable
Mechanical
  • Heavy-duty, zinc-plated, steel chassis
  • Right-angle gear reducer
  • 1" diameter output shaft
  • Optional adjustable torque limiter
  • Heavy-duty pillow block bearings
  • Universal pad mount standard; optional post mount kit

Model RS Swing Gate Operator Features

Model Type
Drive
Voltage
Phase
Type
Control
Maximum
Gate Width
Gate
Speed
Maximum
Gate Weight
List Price Buy
Now
SWR-211 Crank 115-1 Single Button 17 ft 11-14 secs. 15 $1714.65 Order Automatic Gate Openers On Line
SWR-221 Crank 230.1 Single Button 17 ft 11-14 secs. 15 $1790.25 Order Automatic Gate Openers On Line
ACCESSORIES
2500-1116 Heater, 115V
$136.00
Order Automatic Gate Openers On Line
2500-2117 Heater, 230V
$136.00
Order Automatic Gate Openers On Line
2650-111 Arctic Adaption, 115V
$198.00
Order Automatic Gate Openers On Line
2650-112 Arctic Adaption, 230V
$198.00
Order Automatic Gate Openers On Line
2100-2041 Base Plate
$45.00
Order Automatic Gate Openers On Line
2650-117 Torque Limiter with Bushing and Sprocket
$215.00
Order Automatic Gate Openers On Line
2120-483 Optional Post mounting Kit
$75.00
Order Automatic Gate Openers On Line
Compatible Linear Transmitters Block Code Ability
MT-1B Single Button Handheld Transmitter
$29.50
Order Automatic Gate Openers On Line
MT-2B Double Button Handheld Transmitter
$32.50
Order Automatic Gate Openers On Line
ACT-31B Single Button Miniature Transmitter
$29.50
Order Automatic Gate Openers On Line
ACT-34B Four Button Miniature Transmitter
$32.50
Order Automatic Gate Openers On Line
MGT Supervised Gate Edge Transmitter
$145.00
Order Automatic Gate Openers On Line
