MODEL HSLG SLIDE GATE OPERATOR
HLGS Operator The HSLG is the perfect Automatic Gate Opener for the Industry that is looking for a powerful work horse of a gate operator. The HSLG can be used with 115v single phase up to 460v three phase operations. This slide gate opener can open a gate up from 20 feet up to 55 feet depending on the type of gate you are using it on. There are different maximum gate weights depending on the horse power you choose. For example the ½ horse power opener can open a gate weighing up to 900 lbs. were as the 1 hp. can open a gate up to 1500 lbs. See Automatic Gate Opener Specification below for further information.

Specifications:

The slide gate operator shall be the Model HSLG Heavy-Duty Automatic Gate Opener as manufactured by Operator Specialty Company, Inc.

Cabinet: Electrical:
  • Weather-resistant galvannealed steel cabinet with powder coat finish
  • Lockable, gasketed, hinged and removable front cover for easy acces
  • 1/2, 3/4 or 1 hp, 115 or 230 VAC, single phase, thermally protected, heavy-duty PSC motor; 1/2, 3/4 or 1 hp, 230 or 460 VAC, 3 phase heavy-duty motor
  • Magnetic solenoid disc brake
  • Power on/off switch
  • Emergency stop/reset button on front cover
  • Duplex receptacle on 115 VAC units
  • Three-button control station included
  • Accessory connections are 24-volt AC or DC
  • Easily adjustable rotary limit switches
  • Full system capable for access controls and reversing device
Mechanical:
  • #40 roller chain and sprockets
  • Adjustable torque limiter
  • Heavy-duty pillow-block bearings
  • Efficient double V-belt drive
Mounting: Manual Release:
  • 3 - 3 1/2" OD post mounting
  • Optional pad mounting pedestal available

  • Manual release is easily accessible
Anti-Entrapment/Detection Devices: Control Circuit:
  • Operator is pre-wired to accept contact and non-contact detection devices such as contact edges and/or photo electric eyes.
  • Solid state circuit board, 24 VDC
  • Inherent current sensing system
  • 15 LEDs for easy setup and troubleshooting
  • Built in maximum run timer and auto close timer
  • Right-hand/left-hand easy conversion
  • Entrapment alarm

Warning Signals:
  • Continuous tone entrapment alarm
  • Warning beeper to sound when gate is moving
  • Pre-start audio/visual outputs included



OSCO OPEARTOR OSCO HSLG Commerical Series
With a Single Gate you need one Units
With a Double Gate you need Two Units

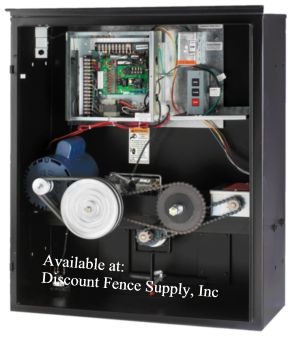

HSLG_01

For a quick look at a reference chart look see our automatic slide gate opener chart selector or swing gate chart selector.

Model HP Voltage Phase Maximum
Gate Weight
Cantilever Type Roller Type Overhead Type List Price Order
Now
HSLG-211 1/2 115 Single 900 lbs 20ft. 25 ft. 35 ft $2,271.73 Buy
HSLG-421
3/4 230 Single 1200 lbs 25ft 35 ft. 45 ft $2,323.31 Buy
HSLG-183 1 208 Three 1500 lbs 30ft 45ft 55ft $2,509.50 Buy
Double-slide- Two Operators required- Slave capability is built in
2500-2015 - 100 ft. cable Master//Slave communication wire .......................... $75.00
Buy
Linear- OSCO Recommended Accessories
2500-2207 - Low Voltage Surge suppressor ................................................... $42.00
Buy
2510-262 - 115V Heater ................................................................................ $112.00
Buy
2510-273 - 230V Heater ................................................................................ $175.00
Buy
2520-354 - 460V Heater ................................................................................ $250.00
Buy
