Automatic Swing Gate Operators
Model SWC

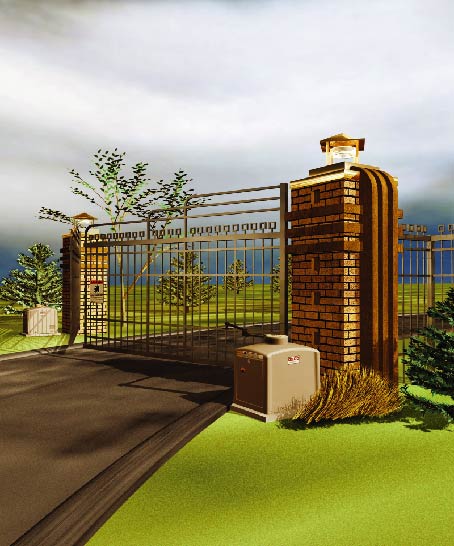

SWC Automatic Gate Opener

The new sleek design of the SWC Commercial swing gate operator add the touch of European design to your automatic gate operator. The SWC electric gate opener includes a durable weather-resistant, UV stabilized polyethylene one-piece cover. To See more features this automatic gate openers cover see the swing gate operator details below below.

Let our customer service representatives assist you in purchasing you SWC Automatic Gate Opener and choosing the accessories to enhance you automatic gate opener.

Light Commercial Swing Gate Openers

SWC electric gate opener's new Polythylene cover for ETL

Solid State Control Circuitry Polyethylene Cover
  • All SW series operators utilize a common UL325/UL991 compliant 24VDC control board
  • Fully featured board for complete access
  • control, security and entrapment protection
  • The sleek and sturdy lockable cover is available in black, tan or landscape granite with a lockable steel access door.

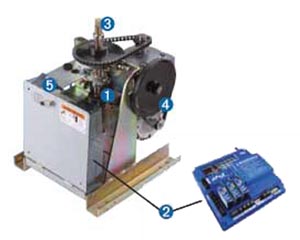

Heavy Duty Components Standard Convenience Features
  • Gear reducer and pillow block bearing provides smooth, reliable and quiet power transmission
  • High starting torque - heavy duty PSC motors

  • Exterior reset button
  • Power on/off button
  • Accessory power outlet on 115V operators
  • 3-button station
  • Master/slave compatible - LH/RH selectable
  • Easily accessible control box and limit switches
  • Quick disconnect crank assembly
  • Electrical/power disconnect
  • Accepts all accessories
  • Footprint 18.31" x 22.64"
Electrical Features:

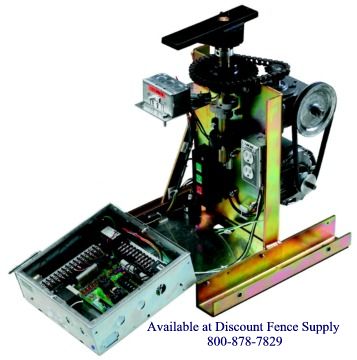

insides of the SWC commerical gate operator

  • Inherent entrapment sensing system featuring dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
  • Continuous tone entrapment alarm with reset button
  • Integrated warning beeper during gate movement
    * 15 diagnostic LEDs on board for ease of setup and troubleshooting
  • Selectable pre-start alarm with provision for ADA compliant visual prestart and run alarm
  • AC and DC power available for access control accessories
  • Integrated maximum run and auto close timer (0-124 sec)
  • Built-in master/slave capability using 3-wire shielded cable
Mechanical Features:
  • Heavy duty zinc plated steel chassis
  • Sleek and sturdy UV-stabilized polyethylene cover
  • Universal pad mount standard - optional post mount kit available
Warning Signals for the SWC Automatic Gate Operators Specifications

single and double.jpg (12404 bytes)

Model HP Voltage Phase Type
Drive
Maximum
Gate Operator Width
Seconds to Open Gate List Price Order Now
Industrial/Commercial Slide Gate Opener
SWC-211 1/2 115 Single CRANK 17 ft 12-16 Sec. $1,534.00 .
SWC-221 1/2 230 Single CRANK 17 ft 12-16 Sec. $1,534.00 .
SWC-121 1 230 Single CRANK 19 ft 12-16 Sec. $1,969.48 .
Double-swing-- Two Operators required- Slave capability is built in
ACCESSORIES
Part # Discription List Price Buy
Now
2120-483 Optional Post mounting Kit
$75.00
.
2500-2116 Heater, 115V
$136.00
.
2500-2117 Heater, 230V
$136.00
.
2650-111 Cold Weather Package, 115V
$198.00
.
2650-112 Cold Weather Package, 230V
$198.00
.
2100-2041 Base Plate (seals bottom of unit)
$45.00
.
2220-047 Torque Limiter, 5" (factory installed) SWC
$215.00
.
2500-2207 Low Voltage Surge Supressor
$42.00
.
Vehicle Detectors (for use as an opening or reversing device)
2510-190 Single detector prewired in operator, 24VDC
$270.00
.
2510-191 Two detector prewired in operator, 24VDC
$530.00
.
Master/Slave Shielded Cable
2500-2014 50 ft. cable, master/slave communication
$38.00
.
2500-2015 100 ft. cable, master/slave communication
$75.00
.
Compatible Linear Transmitters Block Code Ability
MT-1B Single Button Handheld Transmitter
$29.50
Order Automatic Gate Openers On Line
MT-2B Double Button Handheld Transmitter
$32.50
Order Automatic Gate Openers On Line
ACT-31B Single Button Miniature Transmitter
$29.50
Order Automatic Gate Openers On Line
ACT-34B Four Button Miniature Transmitter
$32.50
Order Automatic Gate Openers On Line
MGT Supervised Gate Edge Transmitter
$145.00
Order Automatic Gate Openers On Line
