Automatic Swing Gate Operators
Model SWD

Battery Backup Swing Gate Operator Light Duty Swing Gate Operator

	The new sleek design of the SWD Battery Backup swing gate operator add the touch of European design to your automatic gate operator. The SWD electric gate opener includes a durable weather-resistant, UV stabilized polyethylene one-piece cover. To See more features this automatic gate openers cover see the details below. Let our customer service representatives assist you in purchasing you SWD Automatic Gate Opener and choosing the accessories to enhance you automatic gate opener.
OSCO Model SWD Swing Gate Operators are designed for use on single or double Battery Backup gates

Electrical Swing Automatic Gate Operators Specifications

• 24 VDC Permanent Magnet Motor
• 115 VAC supply converted to 24 VDC for motor and controls
• Power on/off switch
• Emergency stop/reset button on front cover
• Three-button control station included
• Accessory connection are 24-VDC
• Easily Adjustable cam limit switches
• Full system capable for access controls and reversing devices.

• Dual Batteries charged by 114 VAC or optional Solar Panels
• Charging circuit monitors and maintains
  • batter levels
  • monitors AC presence
  • switches to batteries if AC power is lost
  • automatically resumes AC operation when AC power is restored
• Field-selectable power loss option:
  • Option 1: Fail safe (opens the gate and shuts down until AC poser is restored
  • Option 2: Fail secure (continues to cycle gate in normal operation until batteries run down and then fail safe/opens the gate. Resumes normal operation when AC power is restored or when solar panels have sufficiently charged batteries)

• Durable, weather-resistant, UV-Stabillzed polyethylene one-piece cover
• Removable and lockable access door

• Pad mounting standard
• Optional Post mounting Kit available (See below)

Mechanical Swing Automatic Gate Operators Specifications

• Right-angle gear reducer
• One-inch diameter output shaft
• Optional adjustable torque limiter available
• Heavy-duty pillow block bearings

• Operator is pre-wired to accept contact and non-contact detection devices such as contact edges
  and/or photo electric eyes

• Solid state circuit board, 24 VDC
• Inherent current sensing system
• 15 LED's for easy setup and troubleshooting
• Built in Maximum run timer and auto close timer
• Right-hand/left-hand easy conversion
• Master/Slave-simple three-wire connection
• Entrapment alarm

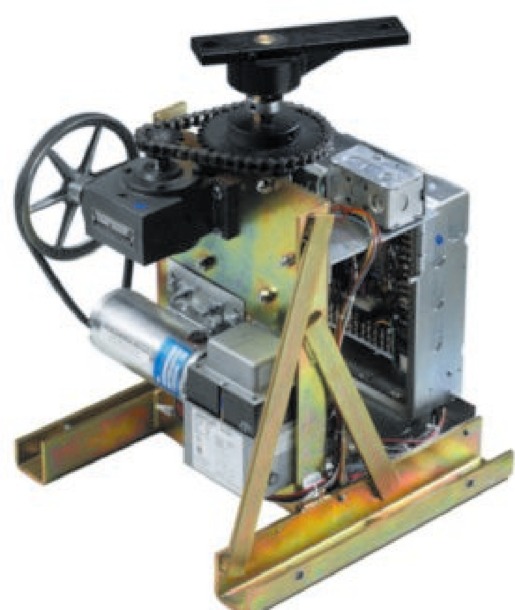

Model RS Swing Gate Operator Features
