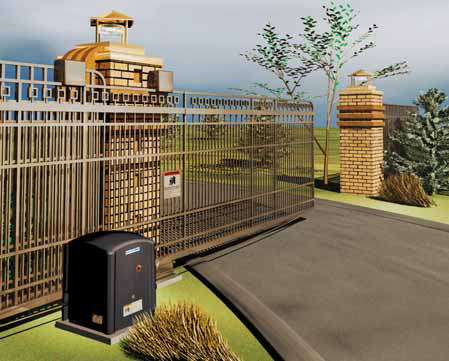

SLR MEDIUM DUTY SLIDE GATE OPERATOR

SLC Commercial
  • 1/2 or 1 HP continuous-duty PSC motor
  • 115 VAC or 230 VAC single phase
SLD Commercial/Residential
  • DC-powered battery back-up with advanced soft start/soft stop motor control
  • Full-time 1/2 HP DC motor
  • Selectable fail-safe or fail-secure modes of operation
  • Solar power capable
SLR Residential
  • 1/2 HP PSC motor
  • 115 VAC or 230 VAC single phase
Common Features
  • Black UV stabilized polyethylene cover
  • Reliable chain drive
  • Pad mount standard; post mount optional
  • Exterior reset button
  • UL325/UL991 compliant APeX controller
  • Manual disconnect
  • Fully integrated radio receiver
SL SERIES SLIDE GATE OPERATOR SPECIFICATIONS
Model
HP
Voltage
(Single Phase)
Drive
Type
Maximum
Gate Length
Maximum
Gate Weight
Gate
Speed
Maximum
Cycles
SLC
SLC-2
1/2
115 or 230 V #41 chain
37'
1000 lbs
11"/sec
continuous duty
SLC-1
1
115 or 230 V #40 chain
45'
2000 lbs
11"/sec
continuous duty
SLD
SLD-211
1/2
115V/24 VDC
Battery Backup
(solar charger optional)
#41 chain
40'
1000 lbs
12"/sec
continuous duty
SLR
SLR-211
1/2
115 V #41 chain
25'
500 lbs
11"/sec
150/day
SLR-221
1/2
230 V #41 chain
25'
500 lbs
11"/sec
150/day
  • Includes APeX controller with integrated radio receiver, plug-in loop detector capability, surge protection, and easy to read labeling standard.

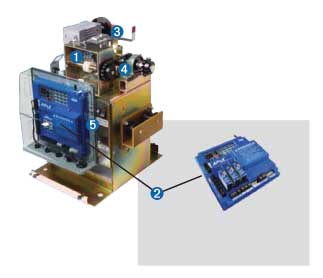

    1. Rotary Mechanicl Limits
    Easy access inside control box
    2. APeX Controls
    3. Manual Disconnect
    • UL325/UL991 compliant 24VCD control module
    • Full featured for access control, security and entrapment protection
    • Simple and secure manual operation during power failure or emercency
    Gear reducer and pillow block bearing for smoth, reliable, quiet power transmission



4. Heavy-Duty Components

5. Standard Convenience     Features

  • Exterior reset button
  • Power on/off button
  • Accessory poer outlet on 115 V machines
  • Integrated 3-button station

Electrical

  • Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
  • Continuous-tone entrapment alarm with reset button
  • Integrated programmable warning beeper during gate movement
  • LED diagnostic display for ease of setup and troubleshooting
  • Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
  • Regulated 24 volt DC power available for access control accessories
  • Integrated maximum run and auto close timer (0-9 minutes)
  • Built-in networked dual gate capability using 3-wire shielded cable
Mechanical

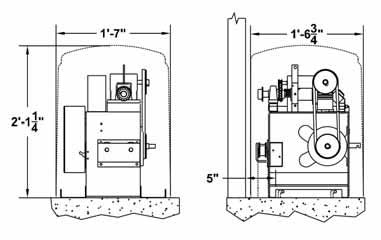

Dimensions
  • Heavy-duty, zinc-plated, steel chassis
  • Easy-to-operate emergency manual disconnect handle
  • 1/2 HP #41 chain
    1 HP #40 chain - 31' included
  • Universal pad mount standard; optional post mount kit
