 Discontinued
GP-SL050
State of the Art Technology.
GTO has a full line of state of the
art AC powered slide automatic gate operators. They are controlled by
self diagnosing microprocessor based control boards. They feature inherent
obstruction sensing, which will reverse direction and stop in either
the open or close cycle, if an obstruction is encountered. This safety
feature is independent of any external safety devices connected to the
system, such as safety edges or photo beams.
| :
|
SPECIFICATIONS: |
INFORMATION: |
- AC Powered with inherent UPS (Uninterrupted Power System / Battery Backup) gate operation and all DC powered counters / safety devices.
- AC Powered with Inherent UPS (Uninterrupted Power Supply)
- 120 Vac 60 Hz built in power receptacles (1 amp rated)
- 2500 RPM, 24V brushless DC motor 1/2 HP. equivalent
- JOG Adjusting Limits
- Opening speed to 90 degrees from 15 seconds
- System requires two 12 Volt batteries for built-in inherent battery back up system. (not included)
|
- Maintenance Free Brushless DC motors
- On board 12 V DC power delivers 300 Amp UPS
- GTO Residential 3/5 Year Warranty
- Meets Small Package Shipping Standards
- Works on all types of gates;* chain link, tube, panel, ornamental, wood and vinyl.
- Optional Universal Receiver (RB709U)
- U.L. rated for Class I, II, III & IV. System certified to be in compliance with U.L. 325, 5th edition.
- Weatherproof high density ABS, UV resistant cover
- NOTE: Ball bearing rollers and covers are recommended on all gates.
|
NOW ONLY
|

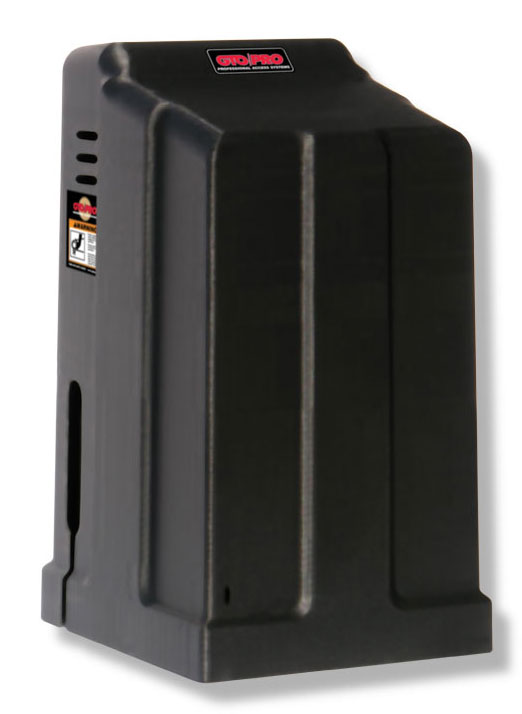

The GP-SL050 Slide Gate Operator:The GP-SL050 is designed for continuous duty
operation of slide gates. Max Gate; Weight 1200 lbs.
(544.3 kg), Length 37 ft. (11.3 m) with a 32 ft. (9.8 m) Maximum Opening |
The GP-SL050 has been discontinued.
Product Number |
Description |
|
|
|
|
Radio Receiver for remote control transmitters
|
|
|
|
|
Transmitter for radio controls
|
|
|
|
|
Additional # 41 Chain 10 ft sections w/ master link
|
|
|
|
Advanced Systems.
The UNIQUE battery back-up feature of the advanced GTO/PRO models takes over in the event of a power failure. The energy stored
in the back-up batteries will provide a minimum of 50 openings
and closings before depleting.
The advanced units also retain the function of all safety devices
and accessories such as photoelectric sensors, card readers, telephone
entry systems, digital keypads, etc., while the unit runs on battery
power. We do this through the use of our special inverter, which converts
the energy stored in our back-up batteries from DC to AC power. The
systems gate movement slows to 1/2 speed to indicate that the opener
is operating on battery power. When normal power is restored, the
battery back-up automatically shuts down, and the gate will
move at full speed; no adjustments are necessary.
Automatic
gate openers are our business. Call us with further questions we are
pleased to serve you. (800) 878-7829
|
