GTO SW4000XL Automatic Gate Opener

Lowest Price Guarantee
Call: 1.800.878.7829

Now offering FREE SHIPPING on all GTO Operators!


Description:

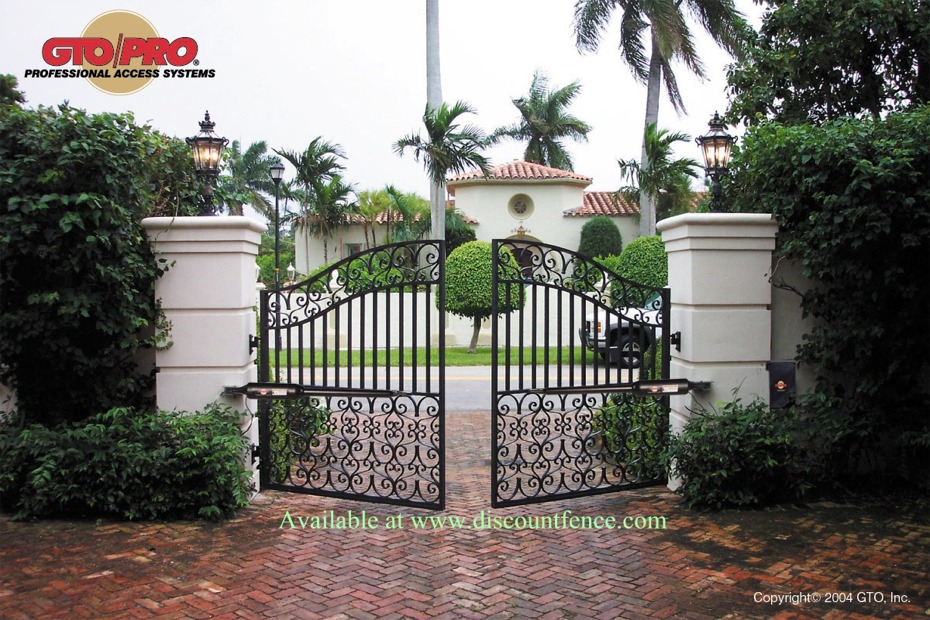

GTO/PRO SW4000XL/SW4200XL swing gate openers. The GTO/PRO SW4200XL works as a "slave" automatic gate operator when installed with the GTO/PRO SW4000XL. The PRO SW4200XL will work on gates that are 3.5 ft. to 16 ft. in length, and weighing up to 650 lb. The PRO SW4200XL wires into the "master" control box; the control board can be programmed for dual gate operation and the sequencing of the two gates. The PRO SW4200XL includes: operator arm w/ 50 ft. power cable, second operator wiring harness, mounting hardware, caution signs.

Features:

  • Features GTO/PRO’s true soft start and stop operation. Open and Close times from 18 seconds.
  • Handles gates up to 16' (4.88 m)long, up to 650 lbs. (226.8 kg) each leaf, for single or double gates
  • Full systems capable "add on ready" heavy-duty control board includes adjustable obstruction sensing, gate sequencing, and auto closing settings (0-120 seconds).
  • High cycle capability with true soft start and stop operation.
  • New sleek design with continental appeal
  • Full access ready package includes battery, radio receiver, entry transmitter, AC transformer, and all necessary mounting hardware for a complete installation.
  • Accommodates push or pull-to-open installations.
  • Solar option available
  • UL Rated for Class I, II, III and IV system certified to be in compliance with UL 325, 4th edition.
  • Works on all types of gates;* chain link, tube, panel, ornamental, wood and vinyl.
  • Full systems capable, control board includes an adjustable obstruction sensing, gate sequencing and auto close settings.

SW4000XL Gate Opener Prices
Description
List Price
Your Price
Buy Now
PRO-SW4000XL Gate Opener (Master)
$1,924.00
Discontinued
Replacement:
SW-4000XLS
PRO-SW4200XL Gate Opener (Slave)
$915.00
Discontinued
Replacement:
SW-4000XLS
Push-to-Open Post Pivot Bracket
(For standard operator/brackets only)
$96.50
$42.00
.
Heavy-Duty Bracket Kit w/ Hardware Bag
Upgrades the operator to handle 1000 lb
& 20ft max gate. Also acts as push to open.
(Includes HB4000 and H200HD)
$224.00
$107.00
.

Guaranteed Lowest Prices on the Internet!!
LOWEST PRICE ON THE INTERNET

Description
List Price
Your Price
Buy Now
1
1 Button Transmitter RB741
$35.40
$19.00
1
1
2 Button Transmitter RB742
$47.86
$23.00
1
1
Keypad GTO F300
$104.27
$64.00
1
1
Exit Wand FM140
$215.65
$149.00
1
1
Photoeye NIR
$208.42
$129.00
1
1
Master Pin Gate Lock FM345
$35.45
$26.85
1

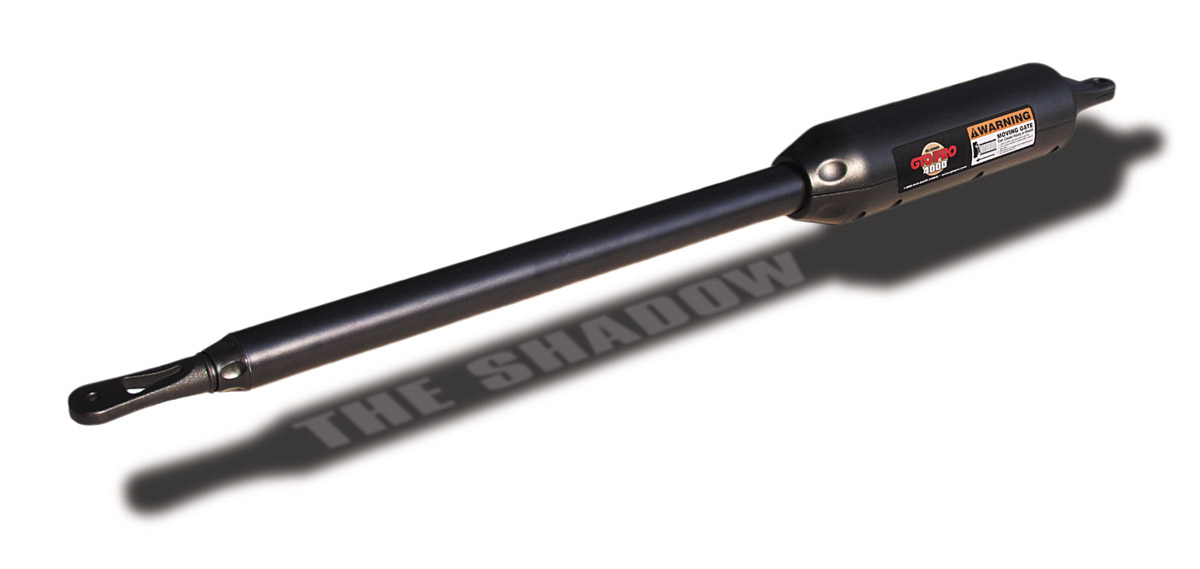

DRIVE

  • Powered by a resilient 12 vt. DC motor.
  • Temperature rating of motor: -30 F To160 F
  • Opening time is 18-20 seconds.
  • Range of arm stroke is up to 24". Operator length with arm fully retracted is 39", mounting point to mounting point.

POWER

  • The PRO SW4000 system is powered by a 12 volt DC /7.0 amp hour, sealed, recharageable battery.
  • Battery charge maintained by a 120 V AC/60 HTZ input and 18 V AC at 40. output, transformer recitified to 14 V DC through the GTO Control Board.

NOTE: Transformer should never be connected directly to any Battery.

Optional: GTO Solar Panel Charger: Float voltage 14.5 V DC output from a 19-3/8" x 15-1/4" silicon alloy panel. Generates minimum of 10 watts at 600 mA. A gated diode on the control board prevents battery discharge.

CONTROLS

  • The GTO control board can be programmed for pull-to-open or push-to-open.
  • Adjustable Auto Close, obstruction sensitivity and dual gate sequencing.



  • Auto-memorization of digital transmitter code.
  • Changing regulated circuit on control board. "Sleep draw" is 40 mA; "Active draw" is 2 to 5 amps.
  • GTO remote-mounted RF receiver tuned at 318 MHZ.
OPERATIONAL CAPACITY
The PRO-SW4000 will handle gates weighing up to 650 lbs. and up to 16 ft. in length if all proper installation procedures have been followed. Note that ball bearing hinges should be used on all gates weighing over 250 lbs.

GATE CAPACITY CHART
(Estimated number of cycles per day based on use with a transformer

1000 lb.
115
110
105
100
900 lb.
120
115
110
105
800 lb.
125
120
115
110
700 lb.
130
125
120
115
600 lb.
135
130
125
120
500 lb.
140
135
130
125
400 lb.
145
140
135
130
300 lb.
150
145
140
135
.
UP to 10 ft
12 ft.
14 ft.
16 ft





Standard SW4000XL

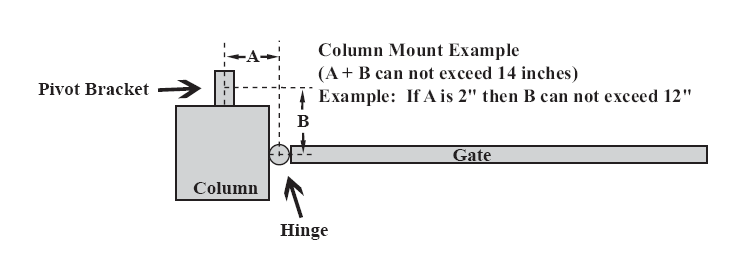

Note: This model cannot accommodate column mounting when the distance of
lines A & B (in picture above) combined length is greater than 14 inches.
The GTO/PRO SW4000XL can accommodate the combined length over 14 inches.



SW4000XL with Heavy-Duty Brackets upgrade


Note: This model cannot accommodate column mounting when the distance of
lines A & B (in picture above) combined length is greater than 17 inches.





The GTO/SW4000XL Model Residential Swing Automatic Gate Openers
for light commercial single or double residential gates
