SW3000XLS Series Automatic Gate Opener
*New* GTO/PRO SW-3000XLS Swing Operator, Usage Up to 650lb or 16ft
FREE SHIPPING ON GTO SW3000XLS

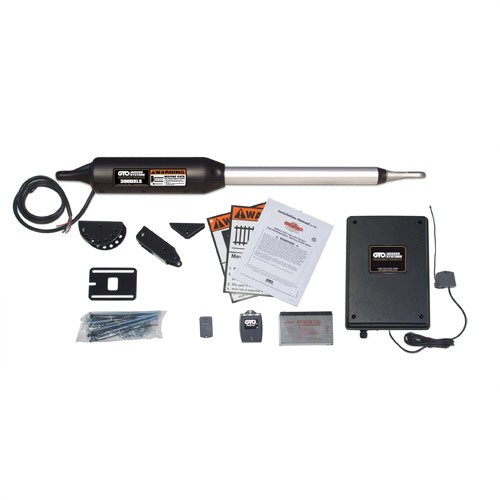

For gates up to 16 ft. and 650 lbs. Comes with standard hardware and mounting brackets
• Solar Compatible, SW-3000XLS is fully compatible, and easily convertable to Solar Powered
• Features GTO/PRO's Improved true soft start and stop operation. Open and Close times from 18 to 25 seconds 16 to 22 seconds!
• Extended Cycle Life - New Improved motor design makes this opener ideal for today's single family homes or ranches.
• Full systems capable, Rev-Counter Control Board includes an adjustable obstruction sensing, gate sequencing and auto close settings.
• 12 Volt DC / 7.0 amp hour, sealed, rechargeable battery (included). Battery charge is maintained by a 120V AC/60 Hz input and 18V AC at 40 VA. output, transformer.
• The GTO/PRO® control board can be programmed for pull-toopen or push-to-open.
• Operating temp -5 F (-21C) to +160 F (71 C).
• Opening time: from 15 to 18 seconds.
• Range of arm stroke: is up to 22˝ (56 cm).
• Operator length: with arm fully retracted is 46.25˝ (118 cm), mounting point to mounting point.
• Operation, diagnostic and safety alarms,
• Inherent obstruction sensing.
• Soft start/soft stop—for long mechanical life expectancy.
• Auto close adjustable 3–120 seconds delay
• Powered by a reliable 12 Volt (120 Watt) DC motor, 16:1 planetary gear drive system.
• Charging regulator circuit on control board. “Sleep draw” is 15 mA; “active draw” is 5 to 9 amps.
• U.L. rated for Class I, II, III & IV. System certified to be in compliance with U.L. 325, 5th edition.
• For a Dual Gate Application the PRO-SW4200XL (2nd Gate Opener Arm) should be used with the PRO-SW4000XL to automate both gate leaves.
• Works on all types of gates;* chain link, tube, panel, ornamental, wood and vinyl.
*NOTE: Solid gates create wind resistance and can affect the performance of the entire gate system. Call technical service for the best advice for your application.
