Safety Equipment |
| Item |
Description: |
Item No: |
Buy Now: |
 |
Square Safety Gate Edge |
MGS20 |
 |
| Designed specifically for easy installation on standard 2" square frames, the MGS20 offer 3-sided activation for an added measure of protection. When touched, these electrically activated edge sensors immediately signal the gate operator to stop and reverse. The sleek design will not detract from the appearance of the gate. |
 |
Round Safety Gate Edge |
MGR20 |
|
| Designed specifically for easy installation on standard 2" round frames, the MGR20 offers 3-sided activation for an added measure of protection. When touched, these electrically activated edge sensors immediately signal the gate operator to stop and reverse. The sleek design will not detract from the appearance of the gate. |
 |
Retro Reflective Photo-eye
with reflector, and mounting bracket.
|
PB1200 |
|
PB1200 Retro-Reflective Photoeye Package.
Retro reflective sensor, economical, 33 ft. range, with reflector, and mounting bracket. N/O or N/C output, 12/24 AC & DC.
The Complete Package Includes:
*
Reflector Sensor
*
Reflector
*Mounting Bracket |
 |
Infrared Photocells |
IRB-325 |
|
| The IRB-325 Photocell is used as an external entrapment protection device type B non-contact sensor for use with the automatic gate Opener. The IRB-325 complies with UL325 standards. Infrared photocell Range 6 to 65 feet 12V to 24V AC or DC +25%, 30-60mA |
 |
|

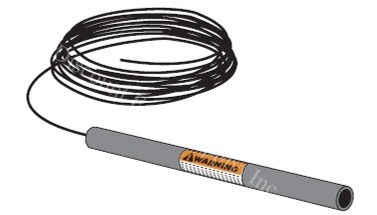

FM140 |
|
| Low voltage or solar powered exit wand automatically opens gate when a vehicle drives by, without requiring the use of a remote control transmitter, key pad or any other operator control device. Additional probes may be added for a wider range of vehicle detection. |
 |
Vehicle Loop Detector/Harness |
MVPDTEK |
|
For use as an opening or reversing device. Two detectors required for opening and for reversal. These detectors will open when a steel object crosses over loop.
(Power 12V AC/DC, 24V AC/DC, 110V AC/DC, 220V AC/DC) |
 |
EMX Lite Preformed Loop |
PL48 |
|
| Rugged and flexible TPE tubing with overall diameter of 0.26inches suitable for saw cut, tar and concrete installations. Comes with 50 ft. of twisted and jacketed lead in wire. Loop is 4x8 in length |
 |
SOS-IX Siren-Operated Sensor |
SOS-IX |
|
| The SOS-IX siren-operated sensor allows emergency vehicles to get through gates without delay, assuring that emergency personnel get to where they need to be in a timely matter. Use it to open residential, commercial, airport, government and military gates during an emergency without the use of keypad codes or keys. |
Transmitters & Receivers |
| Item |
Description: |
Item No: |
Buy Now: |
 |

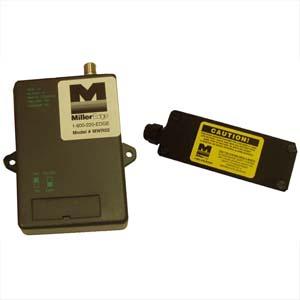

Transmitter and 1 Channel Receiver
|
MWRT02 |
|
| Single channel receiver is designed to work with most gate and commercial door operators. Both the Miller Edge receiver and transmitters are designed to have several selectable options not found on other radio controls. Simply select these options with the convienient dip switches and wire harness. The receiver will operate on either 12 or 24 volt AC or DC and is capable of sending a pulse or continuous signal. |
|
Transmitter with Audible Alarm and / 1 Channel Receiver
|
MWRTA02 |
|
The MWTA02 comes with an Audible Alarm feature that activates when the battery has only 25% of it life remaining, indicating the battery should be replaced. The alarm sounds for 5 to 10 seconds at 1 to 2 minutes intervals.
(Transmitter use with Gate Edge Receiver MWRT02) |
 |
Multi Code Receiver 4 -wire 24V |
MULT109950 |
|
 |
15' Multi Code Coaxial Antenna with type F Conn., and bracket |
MULT106603 |
|
 |
Multi Code 1 Button Transmitter (300mhz) |
MULT3089 |
|
 |
Multi Code 1 Button Mini Transmitter (300mhz) |
MULT3060 |
|
