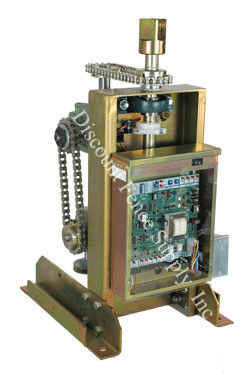

Eagle-200 Commercial Swing Gate Operator
ommercial Swing Gate Operatorommercial Swing Gate Operator
Buy Now
Eagle-200 (includes photo eye) $1505.70

The Eagle-200 is our heavy duty Commercial Swing Gate Operator. Driven by a 1/2 horsepower motor, it can operate gate up to 20' long and 1000 lbs. This swing operator is best suited for commercial and industrial applications.

The dimensions for the Eagle-200 are 116" (W) x 22' (D) x 28' (H).


Eagle-200 Features
Diamond Control Board - The unique Diamond board uses state of the art technology combined with easy of use to provide many exceptional new features that cannot be found on any other board.

2 Wire Maser/Slave - The Diamond board uses a unique Master/Slave system that requires only two wires.

Motor Brake - If the on position is selected, the gate will stop instantly when it reaches the limit switches. This is essential on uphill/downhill applications and on all Fail Safe operations.

One Pass - This tailgating feature works with the reverse loop to allow only one car to pass. After the car passes the gate closes instantly, if a second car approaches the gate stops, and resumes closing once the car has left.

Stop-Reverse - This radio feature allows the transmitter to work as a three-button station and is useful for partial opening. The first command opens the gate, the second stops the gate, and the third command will close the gate.

Timer - The adjustable timer can be set from 1 to 60 seconds, with a maximum run time of 60 seconds.

Overload - If the motor reaches the stall amp for 3 seconds, it will automatically shut down.

Receiver - The receiver terminal is mounted on the control box for easy installation and is pre-wired for a 3-wire or 4-wire receiver.

Stainless Steel Access Door - Offers full access to the control board through the locking stainless steel door.

Gate Opening - Can operate to either the left or right side.

ERD - If the gate hits an obstruction while closing, it will reopen. If it hits an obstruction while opening, it will stop, reverse 6 inches and stop again. The sensitivity is adjustable separately for the open and close cycles.

Global Inputs - The Diamond board's Global Inputs include key switch, keypad, exit loop, phantom loop, reverse loop, edge sensor, open, stop, and close.

Outputs - Outputs include on board 24 VDC for MAG Lock, alarm, and 24 VAC auxiliary power.

Safety Alarm - If the gate hits an object twice while closing or opening, the system will shut down for 5 minutes. On the Diamond board you have two options for reset mode. Selecting the off position will require a manual reset of the board if the previous happens. However, by selecting the on position, the system will automatically reset itself.

120 VAC Power Outlets - The operator contains two 120 VAC Power Outlets for the users convenience.

Power on/off Switch - The operator has an easily accessible power disconnect switch that allows for easy installation and service.

No Pinch Arm - This safety features prohibits the arm from extending past the operator's body when the arm is in the fully extended position.

Warranty - Five Year residential use.


Eagle-200 Specs
Dimensions
16" (W) x 22' (D) x 28' (H)
Shipping Weight
125 lbs
Gate Travel
18-20 second
Capabilities
20' and 1000 lbs
Cycles
Continuous
Power Supply
1/2 HP, 115 VAC at 60HZ
Warranty
5 years commercial use,
7 year home use
