Technical Specifications

The PRO-SW2000XLS is a common selection for the basic residential gate application. Designed to address most chain link, tubular steel, vinyl, wood, aluminum and ornamental gate applications

2000XLS

Mounting Specifications


Note: This model cannot accommodate column mounting when the distance of
lines A & B (in picture above) combined length is greater than 14 inches. s
The GTO/PRO SW4000XL can accommodate the combined length over 14 inches.



SW2000XLS Series Automatic Gate Opener
*New* GTO/PRO SW-2000XLS Swing Operator, Usage Up to 500lb or 16ft

FREE SHIPPING ON GTO SW2000XLS

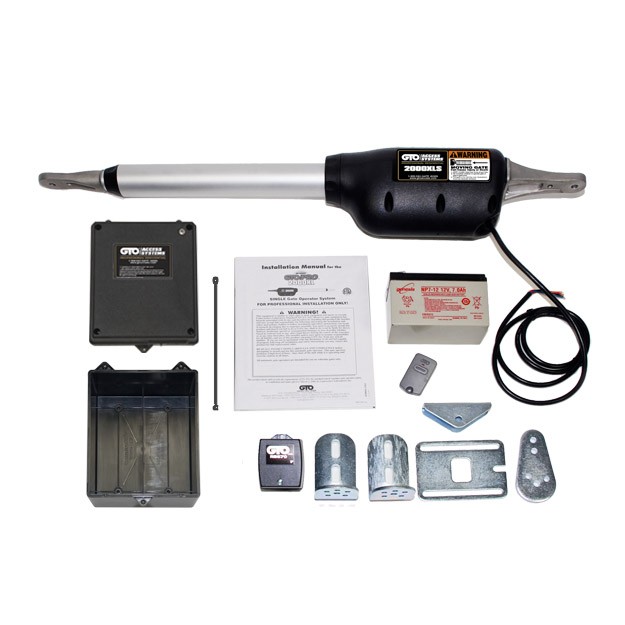

For gates up to 16 ft. and 500 lbs. Comes with standard hardware and mounting brackets



• Solar Compatible, SW-2000XLS is fully compatible, and easily convertable to Solar Powered

• Features GTO/PRO's Improved true soft start and stop operation. Open and Close times from 18 to 20 seconds 16 to 18 seconds!

• Extended Cycle Life - New Improved motor design makes this opener ideal for today's single family homes or ranches.

• Full systems capable, Rev-Counter Control Board includes an adjustable obstruction sensing, gate sequencing and auto close settings.

• The GTO control board can be programmed for pull-to-open or push-to-open.

• Operating temp -5 F (-21C) to +160 F (71 C).

• Opening time: From 16 to 18 seconds.

• Range of arm stroke: is up to 15˝ (38.1 cm).

• Operator length: with arm fully retracted is 33.75˝ (85.2 cm). mounting point to mounting point.

• Operation, diagnostic and safety alarms.

• Inherent obstruction sensing.

• Soft start/soft stop—for long mechanical life expectancy.

• Auto close adjustable 3–120 seconds delay.

• 12 Volt DC / 7.0 amp hour, sealed, rechargeable battery (included). Battery charge is maintained by a 120V AC/60 Hz input and 18V  AC at 40 VA. output, transformer rectified to 14V DC through  control board.

• Powered by a reliable 12 Volt DC motor.

• Charging regulated circuit on control board. “Sleep draw” is 15 mA; “active draw” is 2 to 5 amps.

• For a Dual Gate Application the PRO-SW2002XLS (2nd Gate Opener Arm) should be used with the PRO-SW2000XLS to automate both gate leaves.

• Works on all types of gates;* chain link, tube, panel, ornamental, wood and vinyl.



*NOTE: Solid gates create wind resistance and can affect the performance of the entire gate system. Call technical service for the best advice for your application.
