The Falcon XL


Low Mounting Industrial Motion Sensor, mouting Height 7' -11.5'


Fully Customizable to your application: The falcon will allow uni- or bi-directional sensing, and the unique ability to open a door when traffic is moving away from the sensor.


The Sensor can also be set to discriminate between pedestrian and vehicular traffic.


An excellent alternative to loop detectors.


Universally compatible with and gate or industrial door: Whether your application is an industrial slide gate or swing gate or a simple GTO/PRO 1000 post mount the sensor can be set vertically from 0 to 180 degrees.


There is an optional extension bracket that allows the Falcon to be mounted up to 3 ft. away from the gate.


Tough construction to handle the most extreme conditions: The ABS/Polycarbonate construction is NEMA-4 rated [completely dustproof and weatherproof, can operate from -22 to 140 degree F and offers high immunity to electrical, mechanical, weather-related, and radio interferences

Fast and Easy to set up and tune: After mounting the Falcon, you can put your ladder away. All key parameters of the sensor such as sensitivity, relay, hold time and configuration, pedestrian discrimination, and detection mode- can be made via remote control.


Once set, adjustments can easily be made from ground level.


Saves energy and increases productivity: The falcon's state-of-the-art microprocessor and flat antenna provide the ability to disregard pedestrians and only allow large masses (such as trucks and forklifts) to be detected even at lower mounting heights. In addition, the Falcon is capable of disregarding traffic parallel to the door, which can open a door unnecessarily.

  1. Green LED
  2. Receiver
  3. Red LED
  4. Planar antenna
  5. NEMA 4 Connector
  6. Adjustable mounting bracket for wall or ceiling mounting

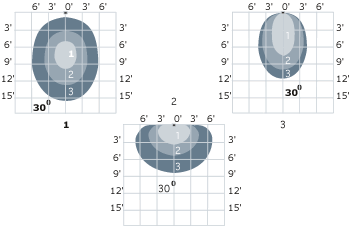

Sensitivity Adjustment Possibilities:

  1. H=16' / Tilt angle = 30
  2. H=11' / Tilt angle = 30
  3. H=8' / Tilt angle = 30 (XL Version)
Falcon Ordering Information
Product Info
Description
Mounting Height
Unit Price
Order
10FALCON
High Mounting Industrial Motion Sensor
11.5' - 23'
$279.00
Buy Now
10FALCONXL
Low Mounting Industrial Motion Sensor
7' - 11'
$279.00
10REMOTE
Easy Set up Remote
$34.00
