JF-2MED Series Open Voice Color Video:
2 Door, 3 Inside Enhanced System
Entry Systems
Telephone Intercom
Keypads

VideoSystems

Intercom Systems
Pc Control Systems
View Shopping Cart
Contact Us




This Aiphone System



2 -> 3
Maximum Capacity

Not Available





Description
The JF Series is a high performance, hands-free video intercom system with a superior monitor and an amazingly slim design. It is easy to operate and requires little time to install. The JF Series is the simple and effective solution to your security needs. Five different door stations are available. The JF-DA is a standard, compact door station with a plastic cover. The JF-DV and JF-DVF both have metal call buttons and vandal/weather-resistant panels. The JF-DVF-HID and JF-DVF-HID-I both have call buttons, weather/vandal-resistant panels, and embedded access control card readers. All of the video door stations have a built-in speaker, microphone and a color CCD camera with white illuminator LEDs.


Enhanced Version Features
The JF enhanced system adds several features to the standard system. It supports two color video door stations and three inside color monitor stations or audio only stations. Inside stations offer hands-free VOX or Push-to-talk (PTT) communication. Door release and entrance monitoring are standard. Additional features include built-in Picture Memory, Internal Voice Memo, and Entrance Messaging. Image sequences are automatically recorded (8 frames per image) when a visitor calls. Up to 50 image sequences can be recorded and 10 sequences can be saved. Save special or necessary images, leave internal voice messages, and play recorded voice greetings for visitors.


• Affordable Color Video System
In the past, black and white video systems have generally been less expensive than color video systems. The new JF Series has changed all that. Now premium color video is available at the cost of basic black and white!!

• Clear Identification Provided Day & Night
In low light conditions, the video door station’s built-in white LED illuminator will activate and send a clear color image to the 3.5” TFT color LCD monitor. Color identification is always available, even at night!!

• Both Hands-free & Push-to-Talk
When a call comes in, press the TALK button to begin hands-free VOX (voice operated exchange) communication. In certain situations, such as a noisy environment, push-to-talk communication gives the person at the monitor control over transmitting and receiving communication.

LED Light Indicates Who is Speaking
For VOX communication, the LED light turns on when you talk to visitors and turns off when you are listening. If communication is push-totalk and release-to-listen, the LED light turns on when pushed and turns off when released.


AIPHONE VIDEO ENTRY SYSTEMS

JFS-2AED STANDARD


JF-2MED COLOR

HANDSFREE VIDEO

MASTER

AF-DA





JF-DA SURFACE MOUNT

COLOR DOOR STATION
(CAMERA)

Power Supply





POWER SUPPLY

Not Available


JFS-2AEDV VANDAL RESISTANT

JF-1MD



JF-2MED COLOR

HANDSFREE VIDEO

MASTER





JF-DV



JF-DV SURFACE

MOUNT COLOR

VANDAL DOOR STATION
(CAMERA)

Power Supply





POWER SUPPLY

Not Available

JFS-2AEDF FLUSH MOUNT VANDAL RESISTANT

JF-1MD

JF-2MED COLOR

HANDSFREE VIDEO

MASTER



JF-DVF



JF-DVF SURFACE MOUNT COLOR VANDAL FLUSH DOOR STATION
(CAMERA)

Power Supply



Power Supply



Not Available



Extra Options
Airphone Product

PS-1820UL

18V DC Power Supply, 2A, UL

Not Available





price

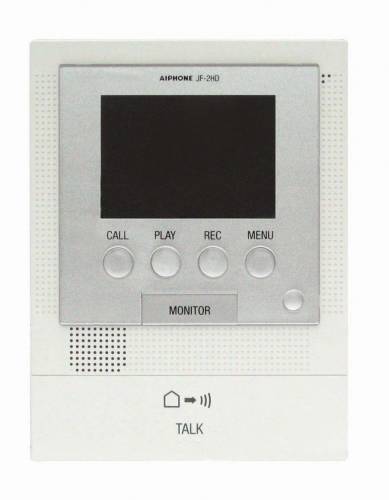

JF-2HD
Hands Free Sub Master for JF-2MED



Not Available



AF-DA
JF-DA
SURFACE MOUNT COLOR DOOR STATION
(CAMERA)

Not Available

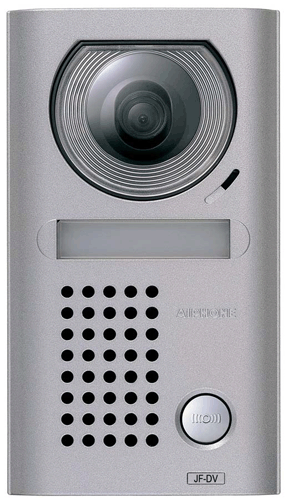

JF-DV
JF-DV
SURFACE MOUNT COLOR VANDAL DOOR STATION (CAMERA)

Not Available

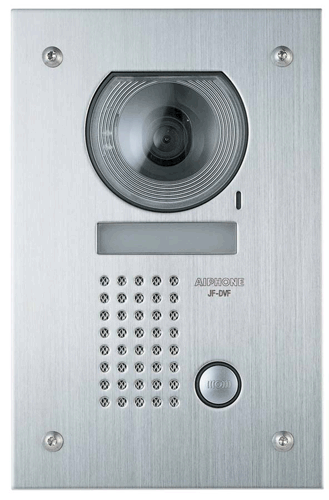

JF-DVF
JF-DVF
SURFACE MOUNT COLOR VANDAL FLUSH DOOR STATION (CAMERA)

Not Available

THumb

SBX-ACE

Stainless Steel Device Enclosure

Not Available







Specifications
Power Source 18V DC, supplied by PS-1820UL
Use one PS-1820UL per system
Video Monitor 3-1/2" direct-view TFT color LCD
Calling Chime, image and audio approx. 45 sec.
Communication AUTOMATIC (hands-free) - to activate, momentarily press the TALK button.
MANUAL (press-to-talk/release-to-listen) - to activate, press the TALK button for 1 sec. or until talk LED turns on.
Scanning Line 525 lines
Min. Illumination 5 Lux at 1' distance
Night Viewing Up to 1' from camera, with white LED projected, background beyond 1' cannot be seen
Door Release  Contact rating:
N/O 24V AC/DC, 500mA
Use RY-18L for Form-C high-current contact
Wiring Door to master: 2-conductor
Master to sub (Enhanced): 4-conductor
All mid cap, solid, non-shielded
Distance

Door to master:

165' (22 AWG); 330'(18 AWG)
Master to farthest sub:
165'(22 AWG): 330' (18 AWG)

Wire Type Master to door:
Aiphone #871802
Between master/subs daisy chained:
Aiphone #871804
Dimensions (HxWxD) JF-2MED/2HD: 7" x 5-5/16" x 1-1/4"
JF-2SD: 6-5/16" x 3-9/16" x 1"
JF-DA: 5-1/8" x 3-7/8" x 1-9/16"
JF-DV: 6-13/16" x 3-7/8" x 1"
JF-DVF:
Faceplate: 8-1/4" x 5-1/16" x 15/16"
BackBox: 7-3/32" x 4-3/8" x 1-25/32"
JF-DVF-HID/HID-I:
Faceplate: 11-5/8" x 5-3/4" x 15/16"
