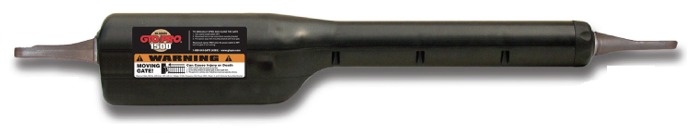

Specifically designed for rural farm and ranch style applications, the PRO-SW1500 is the best solar gate operator on the market for lighter weight gates. This versatile GTO/PRO gate operator is ideal on vinyl, tubular steel, chain link or wood gates; and can be powered by either a low voltage transformer or solar charger.
        • Ideal for solar gate applications on lightweight farm and ranch style gates.
        • Easy to install one-piece low voltage system, no electrician or welding required.
        • Works on all types of gates; chain link, tube, ornamental, wood and vinyl.
        • UL APPROVED obstruction sensing enhances gate operation safety.
        • Requires automotive or marine type battery and weatherproof case (not included).

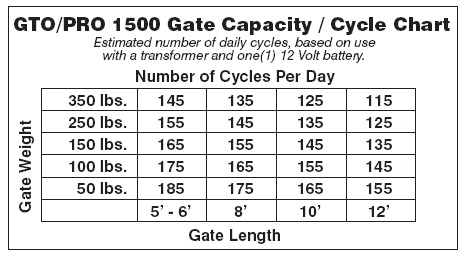

        • Provides up to 175 cycles per day.
        • Provides up to 1,500 back-up cycles with fully charged battery.
        • For gates that open into or out from the property.
        • 12 month Limited Warranty.
Designed to connect two PRO-SW1500 operators for dual gate application. Provides both power and communication between the two operators in a PRO-SW1500 dual operator system. In dual applications accessories can be wired to either/or both operators.

DRIVE
• Powered by a reliable 12 volt DC motor, totally enclosed gear drive system.
• Temperature rating of motor: -5° F (-28° C ) to +160° F ( 71° C).
• Opening time is 18-24 seconds.
• Range of arm stroke is up to 19” (48 cm). Operator length with arm fully retracted is 37.25” (95 cm), mounting point to mounting point.

POWER
• The PRO-SW1500 system is designed to be powered by a standard automotive or marine 12V battery. A weatherproof battery box is required and can be found in most hardware, automotive, marine, or home center store locations.
• Battery charge maintained by a 120 V AC/60 Htz input and 18 V AC at 40 VA. output, transformer rectified to 14 V DC through the GTO Control Board.

CONTROLS
• The GTO/PRO control board can be programmed for pull-to-open or push-to-open.
• Adjustable auto close, obstruction sensitivity and dual gate sequencing.
• Auto-memorization of digital transmitter code.
• Charging regulated circuit on control board. “Sleep draw” is 40 mA; “active draw” is 2 to 5 amps.
• GTO/PRO remote-mounted RF receiver tuned to 318 MHz.

Now offering FREE SHIPPING on all GTO Operators!

Description
List Price
Our Price
Buy Now
FM250 GTO/PRO250
$525.00
$415.00





Now offering AFTER Warranty Service
on all GTO Operators. Call for details.
800-878-7829



  Call us with further questions we are pleased to serve you.
(800) 878-7829
