PC Controlled
4-portal Access Controller AM-3
The Perfect Solution for Storage Unit Facilities Entry
Multi-Door Controller Model AM3

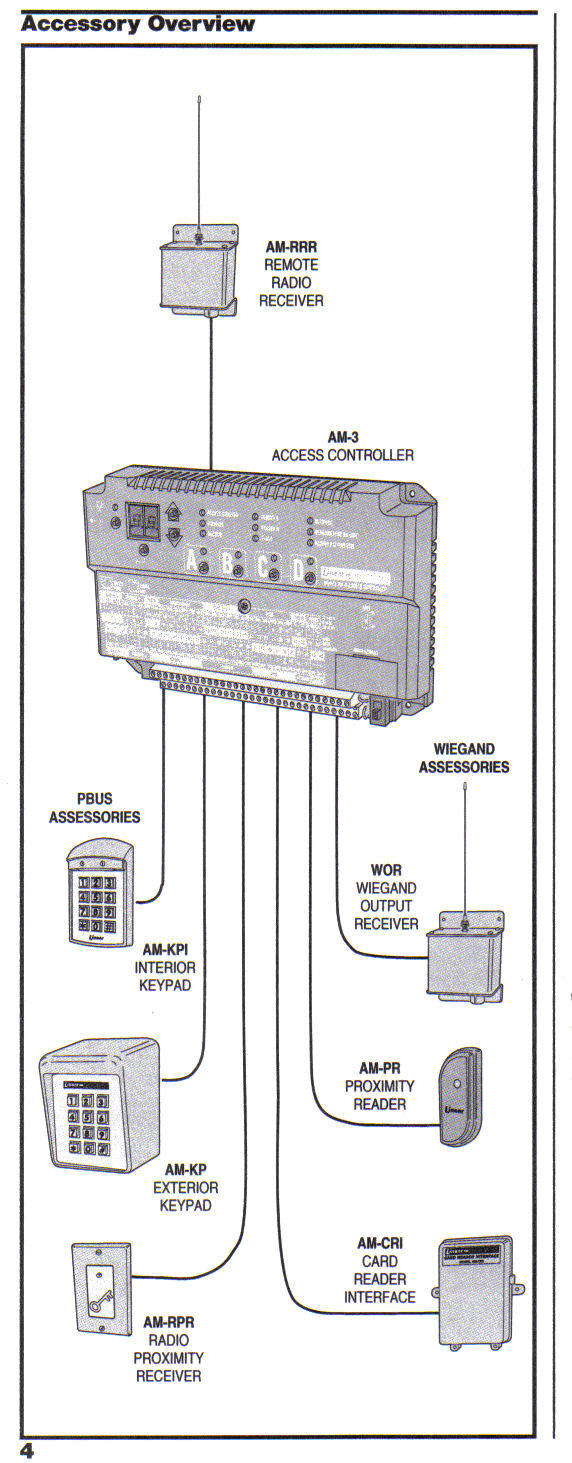

Accessory Overview
Entry Systems
Intercom Systems
Pc Control Systems
View Shopping Cart
Contact Us


PBUS Accessories

AM-RRR Remote Radio Receiver:
For wireless transmitters, connect the model AM-RRR high-gain syperheterodyne UHF receiver. The receiver is housed in a weather-resistandt enclosure and can be mounted indoof and outdoors. Gaskets and a weather-tight strained relief seal the unit from the elements.

AM-RPR Remote Proximity Receiver:
The Model AM-RPR functions as a remote device that supplies localized radio reception for the AM-3 in a typical installation, the AM_OR would be mounted in a plastic single-gang electrical box next to the controlled opening. When the user requires access, their transmitter must be activated within three inches of the AM-RPR faceplate
AM-RP Exterior Keypad:
The Model Am-KP is housed in a rugged cast aluminum enclosure designed for exterior installations. The di-cast keys have bright, easy to read yellow graphics. The keypad can be mounted to a pediestal or directly to a wall. A keylock secures the keypad to the mounting backplate.
AM-KPI Interior Keypad:
The Model AM-KPI keypad is housed in a rugged, plastic enclosure designed to be mounted indoors in a standard single-gang electrical box. Tamper resistant screws secure the keypad to its mounting plate. The die-cast keys have bright, easy-to-read yellow graphics and is illuminated with white LED's. The keypad is supplied with a satin-chrome bezel and three interchangeable colored bezels (White, Ivory, and Bronze) to customize the keypad appearance for the installation.
AM-CRI Card Reader Interface:
The Model AM-CRI expands the standard two AM-3 Wiegand inputs by supporting one or two additional 26-bit Wiegand input devices per AM-CRI interfaces used. Each AM-CRI connects to the AM-3's PBUS inputs

Wiegand Accessories ONLY:

Two Linear accessories are available to connedt WIEGAND format devices to the AM-3. Most other manufacturer's 26, 30 and 31-bit WIEGAND output devices can also be used with the AM-3.
WOR Wiegand Output Radio Receiver:
For block-coded Linear wireless transmitters, connect the Model WOR high gain superheterodyne UHF receiver. The receiver is housed in a weather resistant enclosure and can be mounted indoors or outdoors. Gaskets and a weather-tight wiring strain relief seal the unit from the elements.
AM-PR Proximity Reader:
The Model AM-PR is a radio-based reader that works with either proximity tags (Model AM-PT) or proximity cards (Model AM-PC), both of which are slotted to attach the key rings. Upon reading a user's tag or card, it transmits the entry data via a Wiegand output to the AM-3. An Integral LED confirms to the user that access is granted.


Remote Radio Receiver:
AM-RRR-Remote Radio Receiver:
Remote Radio Receiver:
For wireless transmitters, connect the model AM-RRR high-gain syperheterodyne UHF receiver. The receiver is housed in a weather-resistandt enclosure and can be mounted indoof and outdoors. Gaskets and a weather-tight strained relief seal the unit from the elements.




Remote Proximity Receiver:
AM-RPR - Remote Proximity Receiver:
AM-RPR Remote Proximity Receiver:
The Model AM-RPR functions as a remote device that supplies localized radio reception for the AM-3 in a typical installation, the AM_OR would be mounted in a plastic single-gang electrical box next to the controlled opening. When the user requires access, their transmitter must be activated within three inches of the AM-RPR faceplate



Exterior Keypad:
AM-KP - Exterior Keypad:
Exterior Keypad:.
The Model AM-KP is housed in a rugged cast aluminum enclosure designed for exterior installations. The di-cast keys have bright, easy to read yellow graphics. The keypad can be mounted to a pediestal or directly to a wall. A keylock secures the keypad to the mounting backplate.



Interior Keypad:
AM-KPI - Interior Keypad:
Interior Keypad:
The Model AM-KPI keypad is housed in a rugged, plastic enclosure designed to be mounted indoors in a standard single-gang electrical box. Tamper resistant screws secure the keypad to its mounting plate. The die-cast keys have bright, easy-to-read yellow graphics and is illuminated with white LED's. The keypad is supplied with a satin-chrome bezel and three interchangeable colored bezels (White, Ivory, and Bronze) to customize the keypad appearance for the installation.



Card Reader Interface:
AM-CRI - Card Reader Interface:
Card Reader Interface:
The Model AM-CRI expands the standard two AM-3 Wiegand inputs by supporting one or two additional 26-bit Wiegand input devices per AM-CRI interfaces used. Each AM-CRI connects to the AM-3's PBUS inputs



Wiegand Output Radio Receiver:
WOR Wiegand Output Radio Receiver:
Wiegand Output Radio Receiver:
For block-coded Linear wireless transmitters, connect the Model WOR high gain superheterodyne UHF receiver. The receiver is housed in a weather resistant enclosure and can be mounted indoors or outdoors. Gaskets and a weather-tight wiring strain relief seal the unit from the elements.


Proximity Reader:
AM-PR Proximity Reader:
Proximity Reader:
The Model AM-PR is a radio-based reader that works with either proximity tags (Model AM-PT) or proximity cards (Model AM-PC), both of which are slotted to attach the key rings. Upon reading a user's tag or card, it transmits the entry data via a Wiegand output to the AM-3. An Integral LED confirms to the user that access is granted.


Lockable weather resistant enclosure.:
CAB-3 Lockable weather resistant enclosure.:
Lockable weather resistant NEMA 3R enclosure
Features:
  • Exterior Cabinet
  • NEMA 3R rated
  • Provisions for padlock
  • ***Replaces the CAB-2


Linear Transmitters

MT-1B- Single Button Transmitter
MT-2B- Double Button Transmitter
ACT-31B- Single Button Minature Transmitter
ACT-34B- Double Button Minature Transmitter
