AdvantageDKE
Digital Keypad Economy

The AdvantageDKE line of digital keyless entry offers both post or single gang, surface mount configurations. All models are stand alone and the 26-100L is capable of handling up to 500 different four digit codes, while the 26-100sg can handle up to 100 codes.

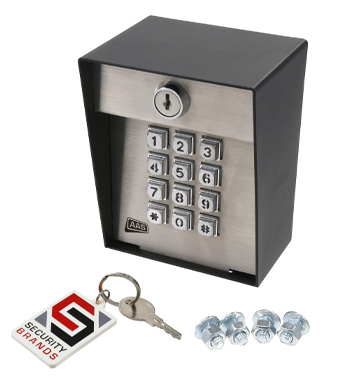

AdvantageDKE post mount models are housed in heavy metal, powder coated enclosures with stainless steel faceplates. A metal keypad is used providing years of trouble free use.



With a 500 code capacity, the 26-100L is the ideal keypad solution for a variety of low cost installations.



General Specifications:   Input: 12-24 VAC or VDC Output: n/o or n/c contact 1 -9 second Operating temperature: -15 to 175 Fahrenheit Dimensions: 26-100L: 5.25h x 4.00w x 3.00d 26-100sg: 4.50h x 2.75w x 0.75d Ship weight: 5 lbs.

Features: 500 programmable 4-digit codes (26-100L) 100 programmable 4-digit codes (26-100sg) Programmable Personal Master Code Programmable Latch / Unlatch Code Night Light Variable relay output time: 1 – 9 seconds Audible tone Non-volatile memory Power consumption: 25mA @ 24VAC Limited two year warranty
