Water-Proof Proximity Keypad Access
Control PRX-320

Entry Systems
Telephone Intercom


Intercom Systems
Pc Control Systems
Gooseneck Mounting Plate
View Shopping Cart
Contact Us
• Stand-alone unit is appropriate for use on gates or doors where there is need for resistance to climactic conditions.
• Powered by 12V DC supply
• Can be used on solar installations
• Has the option of using a built-in contact for doorbell enunciators.
• Use it as a keypad for some users and as a proximity card reader for others.

Proximity & Keypad Control
L=5.0” x W=2.75” x D=1.4”


1. Stand alone operation.

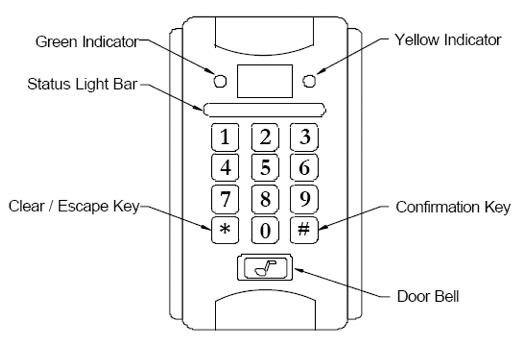

2. Front panel power-on indicator.
3. Four door opening modes.
             ENTRY MODE 1: Enter 4-digit Pass Code only.
             ENTRY MODE 2: Proximity Card access only.
             ENTRY MODE 3: Proximity Card plus 4-digit Pass Code.
             ENTRY MODE 4: Proximity Card or 4-digit Pass Code
4. Programming Mode is protected by a 4-digit System Pass Code.
5. All Proximity Cards must be registered prior to use.
6. Maximum storage of 2000 cards.
8. Non-volatile memory protects against data loss.


Technical Information
Power Requirements:
12 VDC 500-800 mA
Power Consumption:
90 mA standby / 110 mA activated
Relay Contact Rating:
3A /12VDC
Power Indicator:
RED LED Bar on Constant
Key Confirmation:
Green LED On while key is depressed
Entry Confirmation: Green LED Bar On for set time
Entry Denied: Yellow LED flashing
Alarm condition: Yellow LED constant
Read Range: 5 inches
Access: Up to 2000 users by card or 8 user passwords
Mounting Adapter Plate
20 Access Cards for PRX320
Gooseneck stand for PRX-320

Product ID
Order Now
Proximity Reader
$ 156.25
Mounting Adapter Plate
20 Access Cards for PRX320
Gooseneck stand for PRX-320
