Option Lock Chain Link Privacy Slats
Privacy Slats for Chain Link Fences

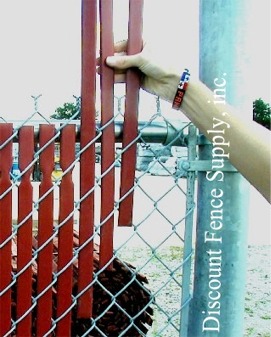

Fence slats are flat tubular plastic extrusions which are inserted into any type of chain link fencing to add beauty and privacy to both sides of fence. Once installed, Fence slats are virtually maintenance free. Salt, sand and road dirt will not harm the slats in any way. Due to the UV inhibited thermo plastic design, Fence slats will not fade, chip or discolor for at least 15 years. Top locking slats have a special locking feature, Once the horizontal strip is in place, the slats cannot be removed easily from the fence.

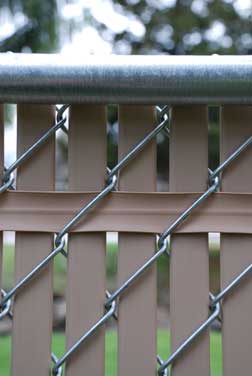

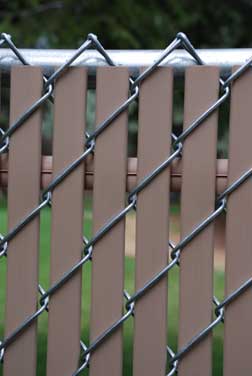

This privacy slat provides an economical and attractive way to enhance any chain link fence. The locking system is can be installed on either the top or the bottom to ensure a clean, straight edge along the fence.

OptionLock™ privacy slats offer a new patented system which easily secures the PVC slats into place at the top or bottom of the chain link fence (whichever you decide) providing a clean, even look. Each bag of slats will cover about ten linear feet.

HDPE Technical Properties
Melt Index (.6) A low melt index is an indication of improved stress and crack resistance.
Density (.957) Polyethylene varies from .914 to .960 in density. A higher density yields maximum stiffness without
becoming brittle.
Minimum Temp. (-76° F) Polyethylene will stay flexible even at this extreme temperature.
Maximum Temp. (250° F) Polyethylene will not distort until reaching this temperature.
Tensile Strength (3,700 psi) Material will not suffer distortion at lesser impacts or loads.

Durability:
HDPE products distributed by Discount Fence Supply, Inc. are resistant to severe weather conditions, salt water, sand, road dirt, most acids, alcohol, alkaline, ammonia, petroleum distillates and common environmental pollutants.

Color Disclaimer
Because of limitations and variations in the printing and graphic process, the color guide shown is to be used as an approximation of the actual slats. Colors are industry standard.

Chainlink Mesh Size
Available for 2" , 2-1/4" , 2-3/8"
A standard chainlink mesh size is usually 2"
The same size slat is used for either 2-1/4" or 2-3/8"
Slats for 1-3/4" mesh chainlink are only available on orders of 50 bags or more (30% Upcharge)

Limited Warranty
OptionLock™ carries a 25 year limited warranty to the original buyer against breakage under normal conditions.

Features

• Material − Manufactured from High Density Polyethylene (HDPE) and UV stabilized to protect the slats from the sun’s ultra violet rays.
• Colors − Available in 9 standard colors (see color guide below). Custom color matching available.
• Strength − All OptionLock™ slats are reinforced with a center leg. This provides for a strong, durable slat that allows easy installation and helps hold its shape for years to come.
• Quantity Per Package − You’ll get enough slats to cover ten lineal feet of fence per bag; Guaranteed!
• Acceptance − All materials used in OptionLock™ slats meet ASTM Specifications.

1. DESIGN: Top-Locking Slats are flat and tubular in shape, with circular, notched-out holes located near the top of the slat.

2. STANDARD HEIGHTS: 3, 3.5, 4, 5, 6, 7, 8, 10, & 12 feet.

3. SLAT LENGTH: 2 ” shorter than the overall height of fence.

4. FLEXIBLE, TOP-LOCKING CHANNEL

5. WIND LOAD & PRIVACY FACTOR: Approximately 75%.

6. 25-year warranty
